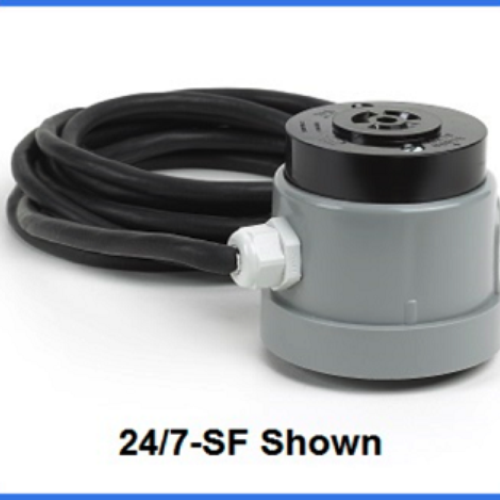

STREETLIGHT MOUNTED AUXILIARY POWER ADAPTER 24/7-SF
STREETLIGHT MOUNTED AUXILIARY POWER ADAPTER 24/7-SF
Regular price
$128.85
Regular price
Sale price
$128.85
Unit price
/
per
Couldn't load pickup availability
Streetlight power adapters provide auxiliary AC power and include a 6 ft. grounded power cord with a grounded receptacle for easy access to 120 volts or 240 volts from the light pole. It mounts onto a standard NEMA type receptacle. Applications include: WIFI, WIFI MAX, cell phone, pole mounted transmitters, security cameras, and traffic monitoring. 24/7 integrated photocontrol operation in one low-profile housing unit.
| Features | Description |
|---|---|
| Housing: | UV stabilized high-impact polypropylene |
| Photocell: | Broad surface sensing element |
| Turn-on: | 1 to 3 foot-candles |
| Turn-on/ off Ratio: | 1:3 |
| Time Delay: | Minimum 15 seconds |
| Switch Type: | Single-pole, single-throw. Contact position at night normally closed |
| Temperature Range: | -40 degree to 158 degree F |
| Power Consumption: | 1.1 watts average at 120 VAC |
| Rated Life: | 5,000 operations minimum at rated load |
| Surge Protection: | MOV (Metal Oxide Varistor). 320 joule rating |
24/7 Series Photocontrol Guideline
| Precision Model | Volts | Photocell Included | Lighting Operation | Cord Set Operation | Price |
|---|---|---|---|---|---|
| 24/7SF * | 120/240 V | No | Lights on at night | Energized 24/7 | $128.85 |
| 24/7A | 120 V | Yes | Lights on at night | Energized at night | $110.85 |
| 24/7B | 120 V | Yes | Lights on at night | Energized 24/7 | $112.15 |
| 24/7C | 240 V | Yes | Lights on at night | Energized at night | $112.15 |
| 24/7D | 240 V | Yes | Lights on at night | Energized 24/7 | $112.15 |
* 24/7SF comes with a top mounted NEMA type base for optional photo control or shorting cap (keeps the light on).
Additional Information
| Weight | 2 lbs. |
| Dimensions | 6 x 6 x 8 in |
| Streetlight | 24/7A, 24/7B, 24/7C, 24/7D, 24/7SF |
